AIRTEC Motorsport Nissan Juke Front Mount Intercooler Upgrade

After a long development process, AIRTEC is proud to launch the front mount intercooler upgrade kit designed for Nissan Juke 1.6 turbo models (currently only fits with Nismo front bumper).

Technical Data

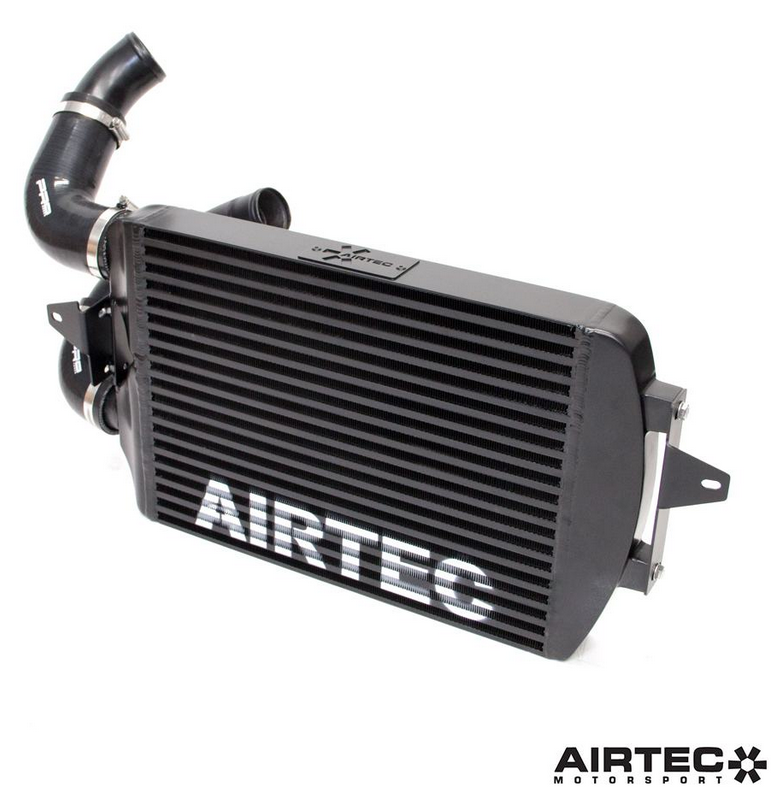

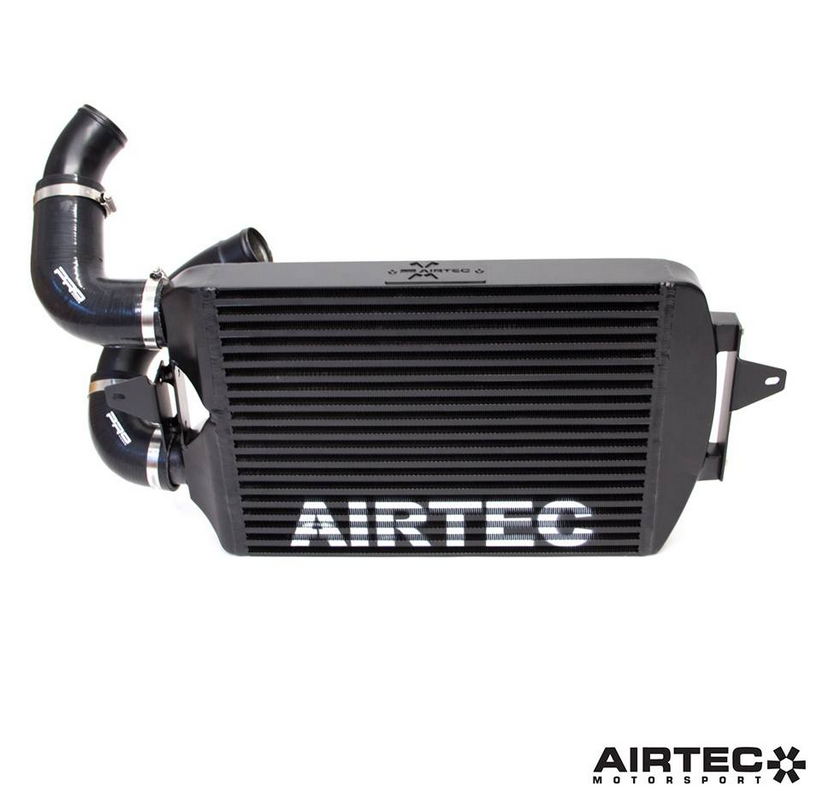

AIRTEC Motorsport Nissan Juke Front Mount Intercooler Upgrade.

After a long development process, AIRTEC is proud to launch the front mount intercooler upgrade kit designed for Nissan Juke 1.6 turbo models (currently only fits with Nismo front bumper).

With the vehicle’s original side-mount set up limited by its size and placement that restricts air flow, AIRTEC Motorsport’s solution to improving the set up is to utilise the available space behind the front bumper and develop a much larger front mount intercooler package. As a result, this direct replacement intercooler measures nearly twice as high and over 50% wider overall, whilst capacity is increased by a huge 5.3 litres over standard; over double the capacity of the original. Frontal area is also increased from 50cm² to a huge 155cm², which is over triple the area, to help cool the extra capacity.

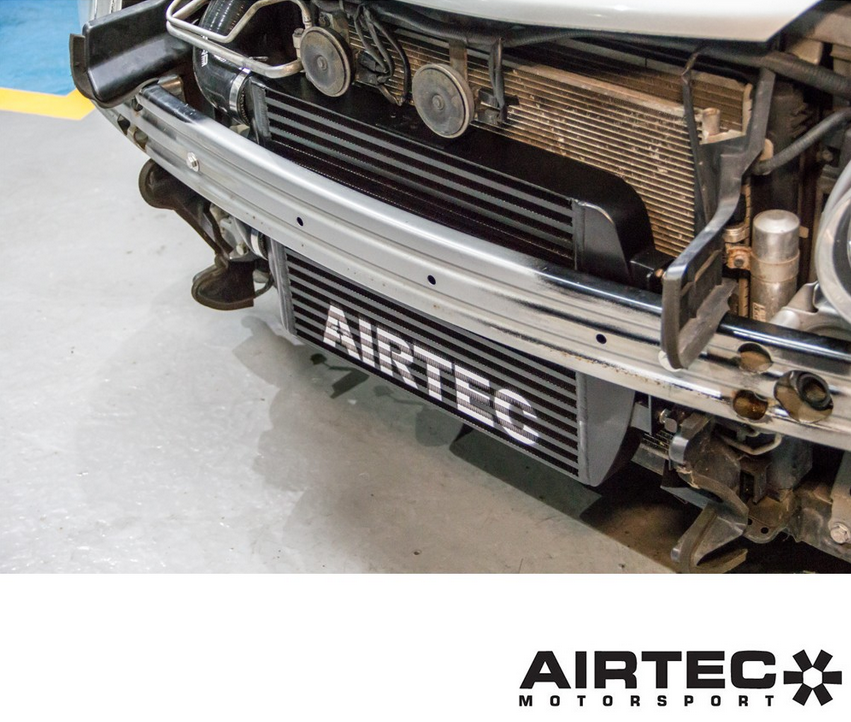

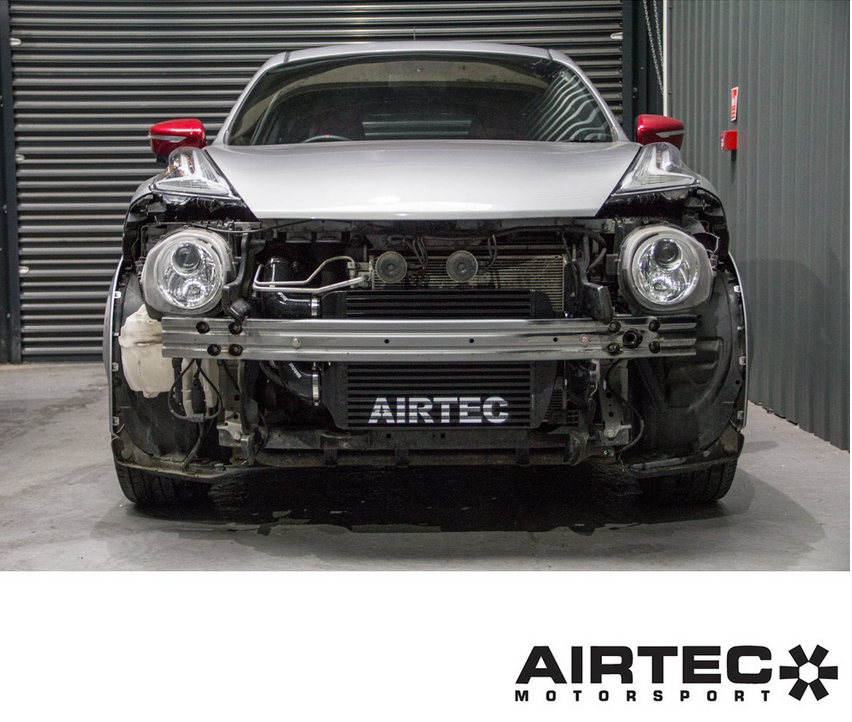

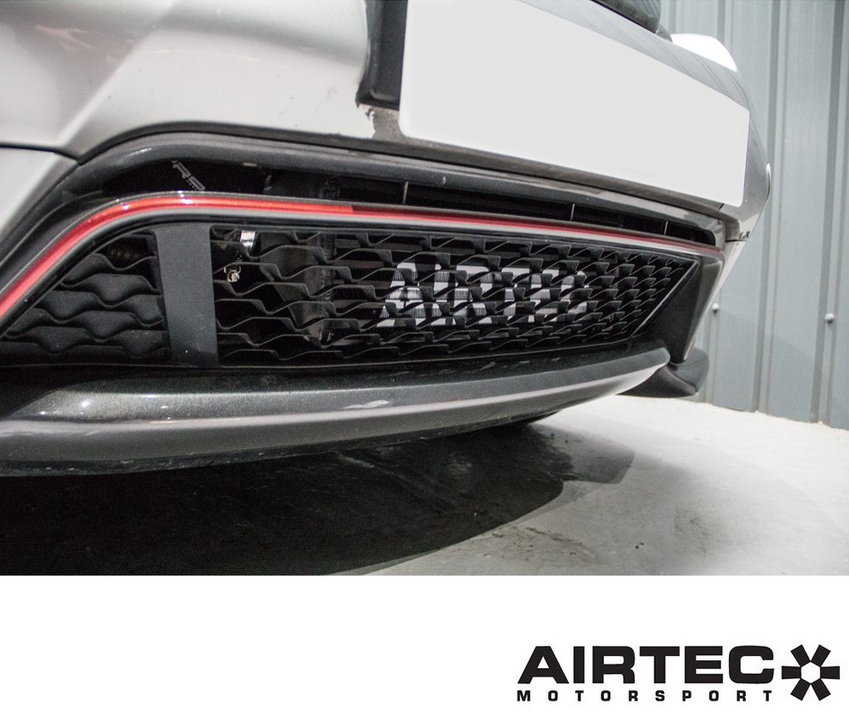

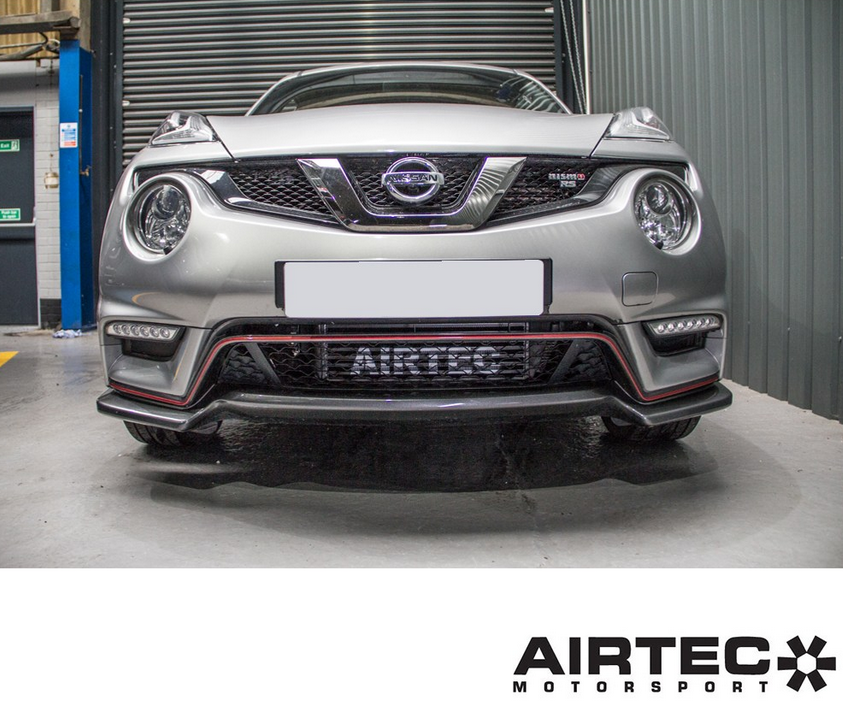

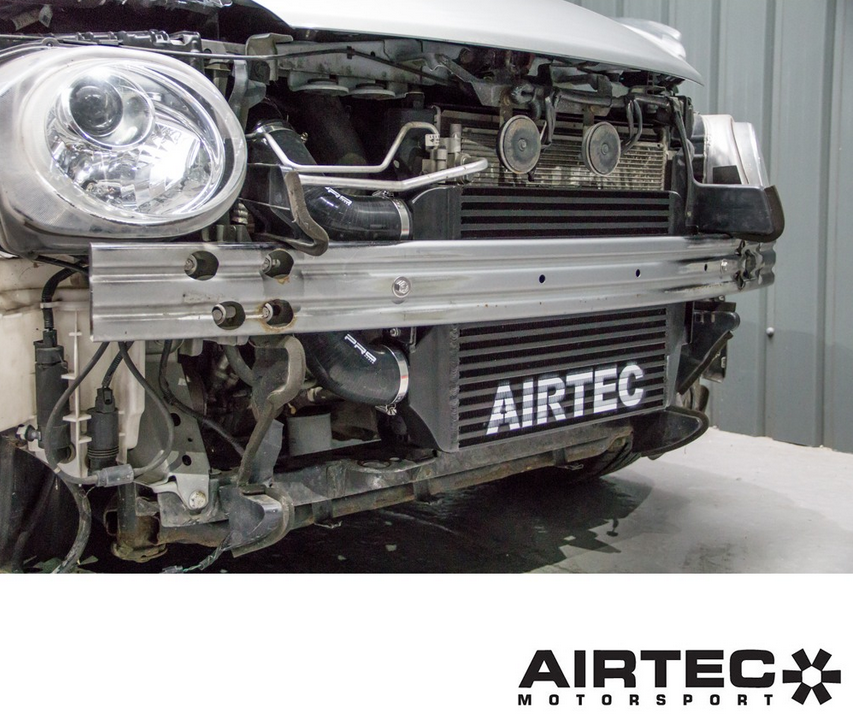

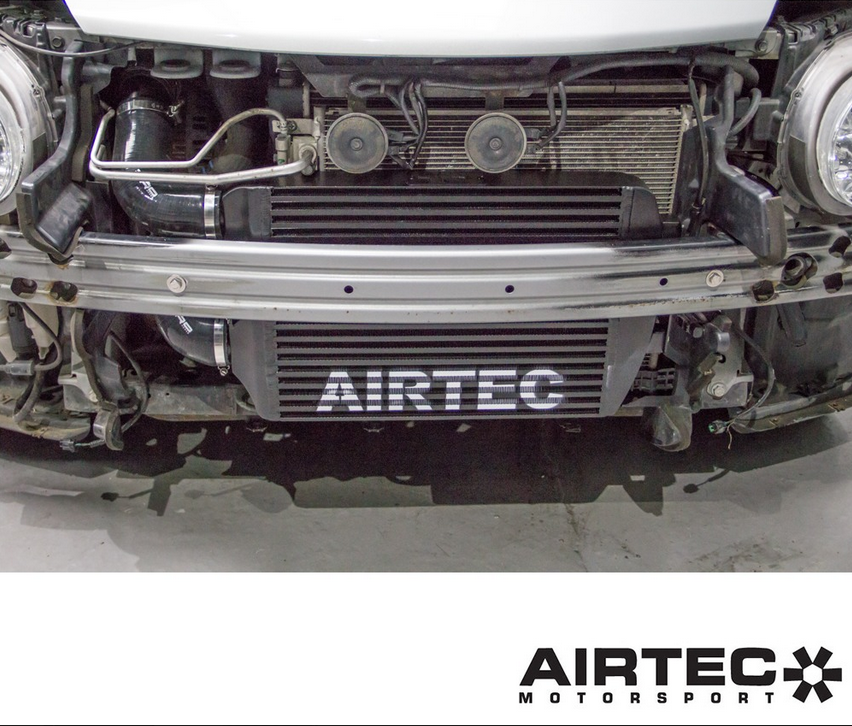

Despite the huge increase in size that will ensure charge temperatures remain lower for longer, the intercooler fits neatly behind the bumper and requires no modifications to fit.

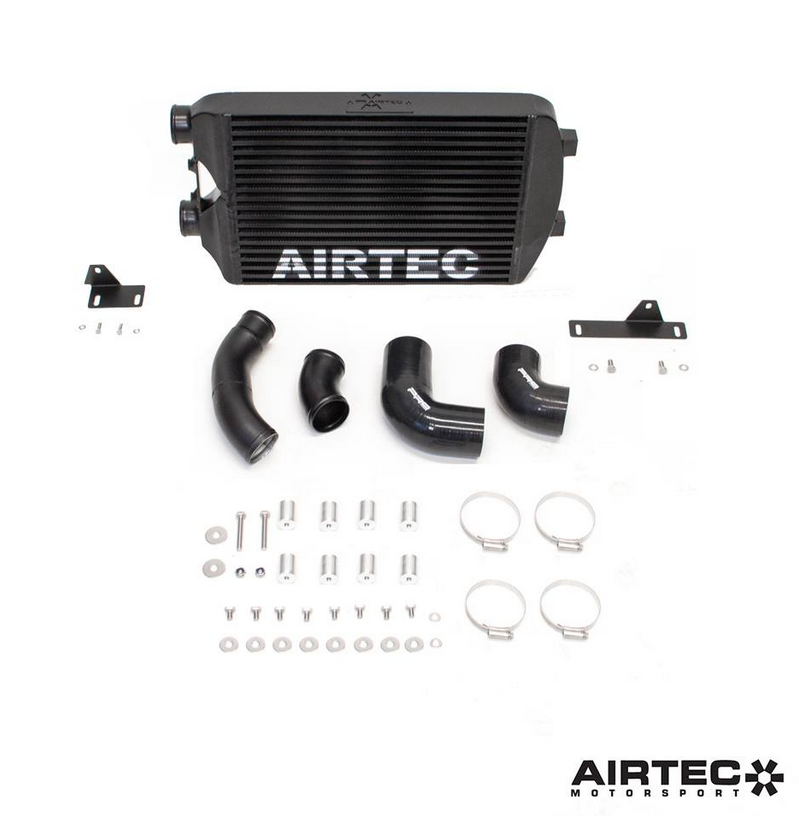

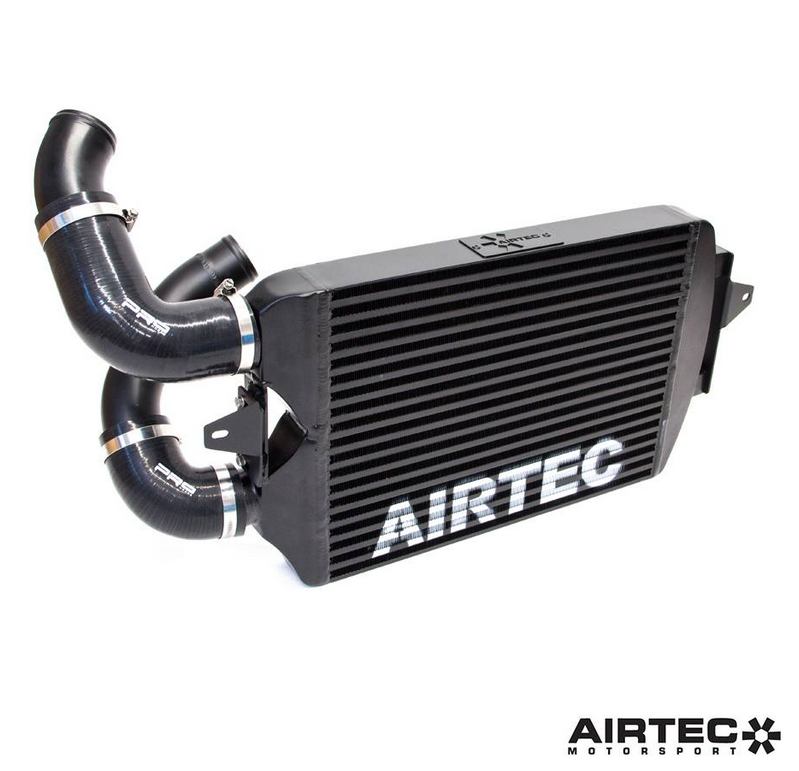

Finished in a high-quality powder-coated black, the comprehensive fitting kit includes two alloy boost pipes, two silicone connectors as well as all fixtures and fittings, together with a detailed, step-by-step fitting guide.

Dimensions:

    OEM intercooler:
    Width: 278mm
    Height: 182mm
    Depth: 80mm
    Capacity: 4 litres
    Front area: 50cm²
    AIRTEC Motorsport intercooler:
    Width: 460mm
    Height: 337mm
    Depth: 60mm
    Capacity: 9.3 litres
    Frontal area: 155cm²

Features:

    Over twice the capacity of the original
    Three times larger frontal surface area
    Twin-pass design for improved cooling
    Direct fit with no cutting or trimming
    Comprehensive fitting guide

Please note: this kit was developed using a Nismo model and as a result, it cannot guarantee the same direct fit to non-Nismo models fitted with the same engine but different bumper arrangement.

PLEASE SPECIFY WHEN PURCHASING:

No AIRTEC-logo or colored AIRTEC-logo (blue, red, white, yellow, orange, green, gray, pink or purple).
