Three-chamber intake manifold VW Golf R32 Turbo

Three-chamber intake manifold VAG 3.2 VW Golf R, Audi TT, Audi A3 R32 Turbo

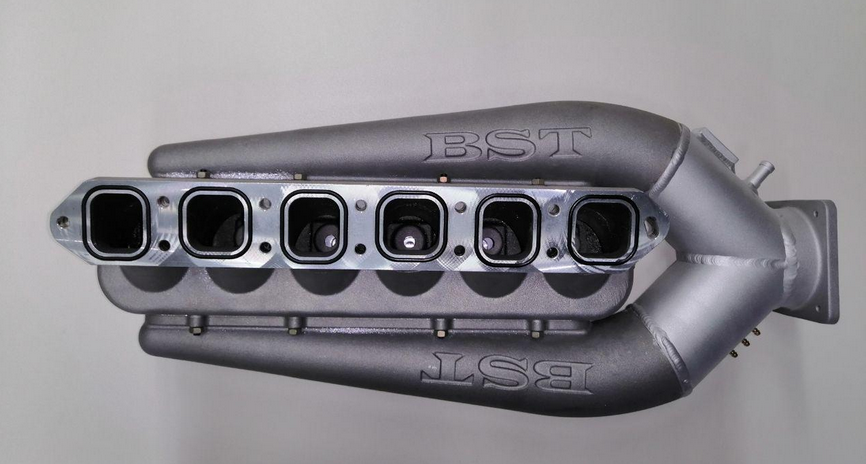

The three-chamber intake manifold has been developed for high performance up to well over 1000 hp. The air is distributed even more evenly to all 6 channels through an upper and a lower gap. Inside, funnels on the individual channels ensure a perfect flow.

The intake manifold is optionally available with an additional injection nozzle gallery for the necessary fuel supply. The original injection rail on the R32 engine can still be used.

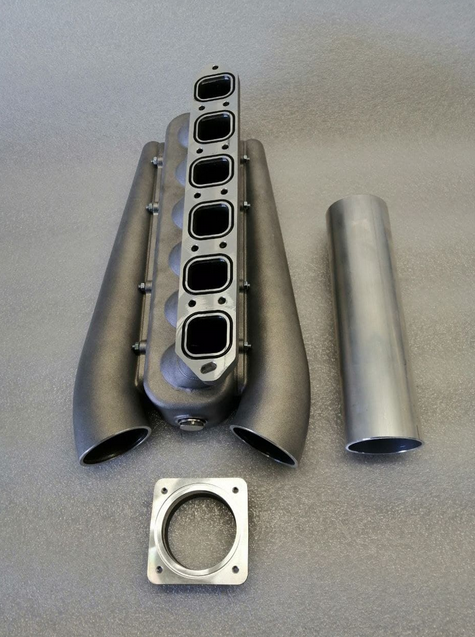

The three-chamber slotted suction pipe is also available as a kit so that the position of the throttle valve can be determined by yourself. The connection of the throttle valve and the two funnels must then be made on the vehicle.

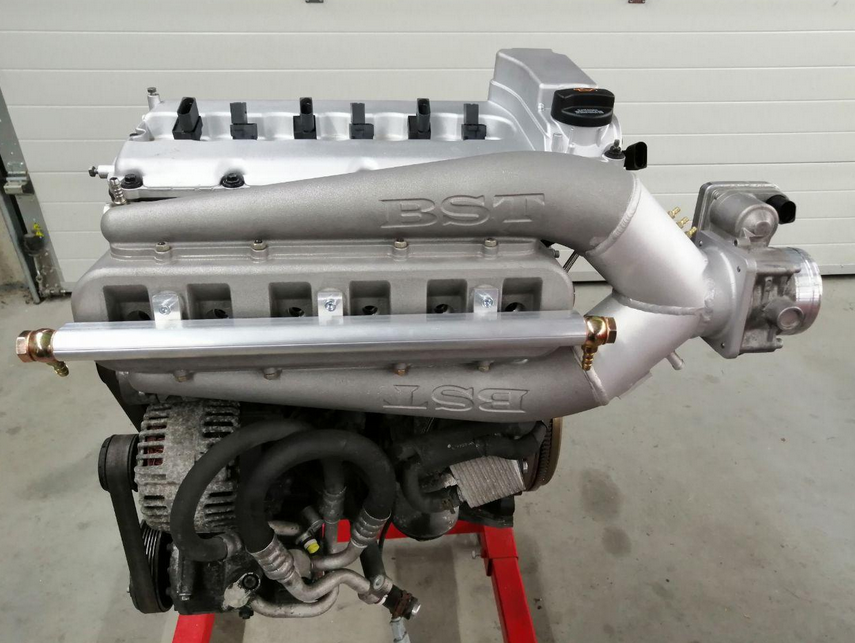

The intake manifold can be installed without changing the auxiliary units such as the alternator and air conditioning compressor, but the newer bracket for the auxiliary units (from 2006, e.g. BUB engine) must be used!

So far, the three-chamber slotted suction pipe with 1347 HP has been successfully tested!

Advantages:

• uniquely protected design

• with and without additional injection nozzle gallery

• 100% Made in Germany!

• Even filling of all cylinders

• tested with 1347 hp

• Withstands pressure of more than 5 bar

• Integrated O-rings on the cylinder head flange and throttle valve flange

Suitable for 3.2l V6 engine code: AXJ * AYT * AZZ * BKJ * BKL * BMX * BMV * BRJ * BRK * BDB * BDL * BKK * * BMJ * BUB * BHE * BFH * BML * CBRA * CFLA * M02.2Y

Possible options:

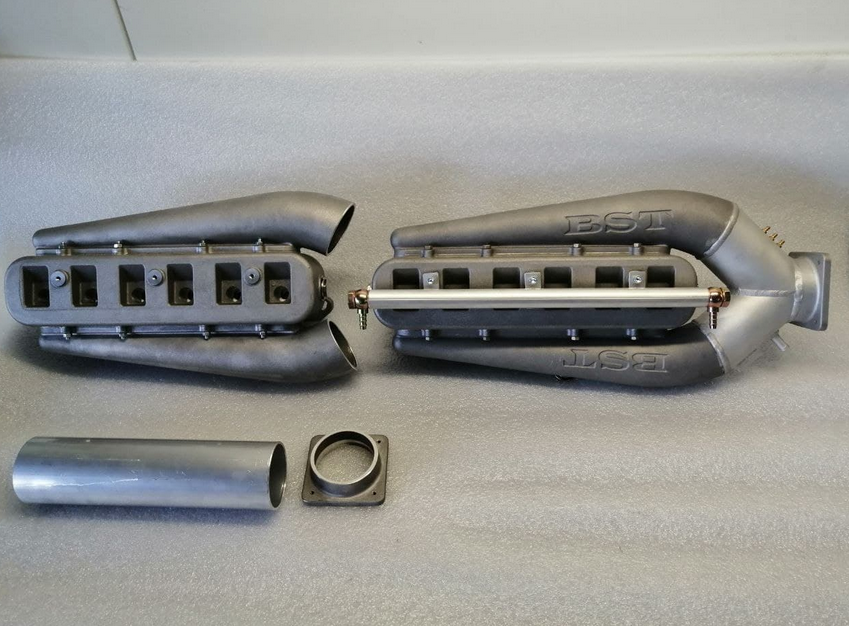

• as a kit (DK flange is adapted to the vehicle) WITHOUT an additional nozzle gallery

• as a kit (DK flange is adapted to the vehicle) WITH additional nozzle gallery and injection rail

• completely welded WITHOUT additional nozzle gallery

• completely welded WITH additional nozzle gallery and injection rail

Scope of delivery:

• Three-chamber suction pipe

• 6 x O-rings for the channels

• 1 x O-ring for throttle valve flange

• 9 x stud bolts M7

• 9 x M7 nuts
