AIRTEC Charger Kit Honda Civic Type R FK2 incl. Boost Pipe Kit, ATINTHON02

AIRTEC Motorsport offers low-cost yet high-quality solutions for lowering the charge air temperature.
The powerful intercoolers have good cooling properties and less backpressure than standard parts.
The British development team brings its passion for design and performance into every single AIRTEC product.

Not admitted in the area of STVO.

Please tell us when ordering whether the intercooler in silver or black and with or without AIRTEC logo should be ordered for you.

TECHNICAL DATA

introducing the new AIRTEC front mount intercooler upgrade for the Honda Civic Type R FK2 with Big Boost Pipe Kit.

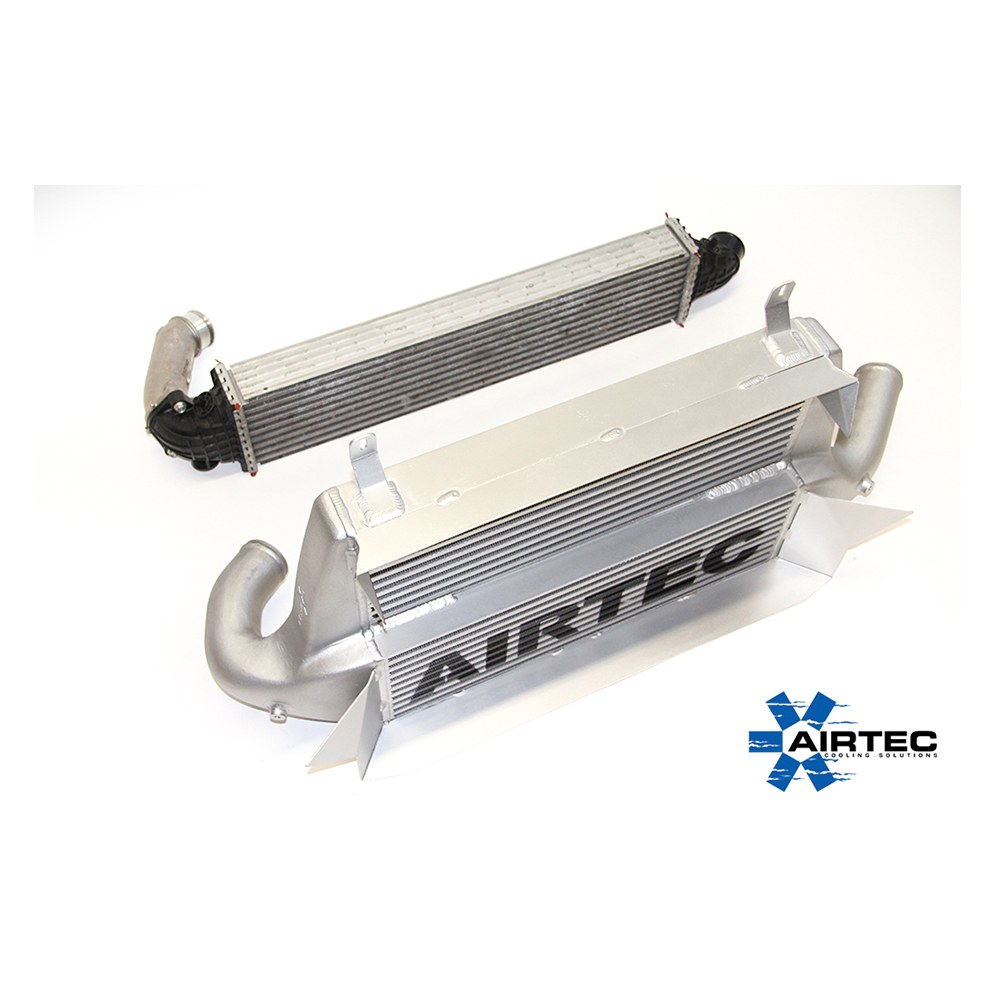

Designed to fit all 2015-2017 Honda Civic Type R models, this freer flowing front mount intercooler sets up for a much smaller, more restrictive, OEM set up.

Dyno proven back-to-back testing showed a huge reduction in charge temps over standard (see below).

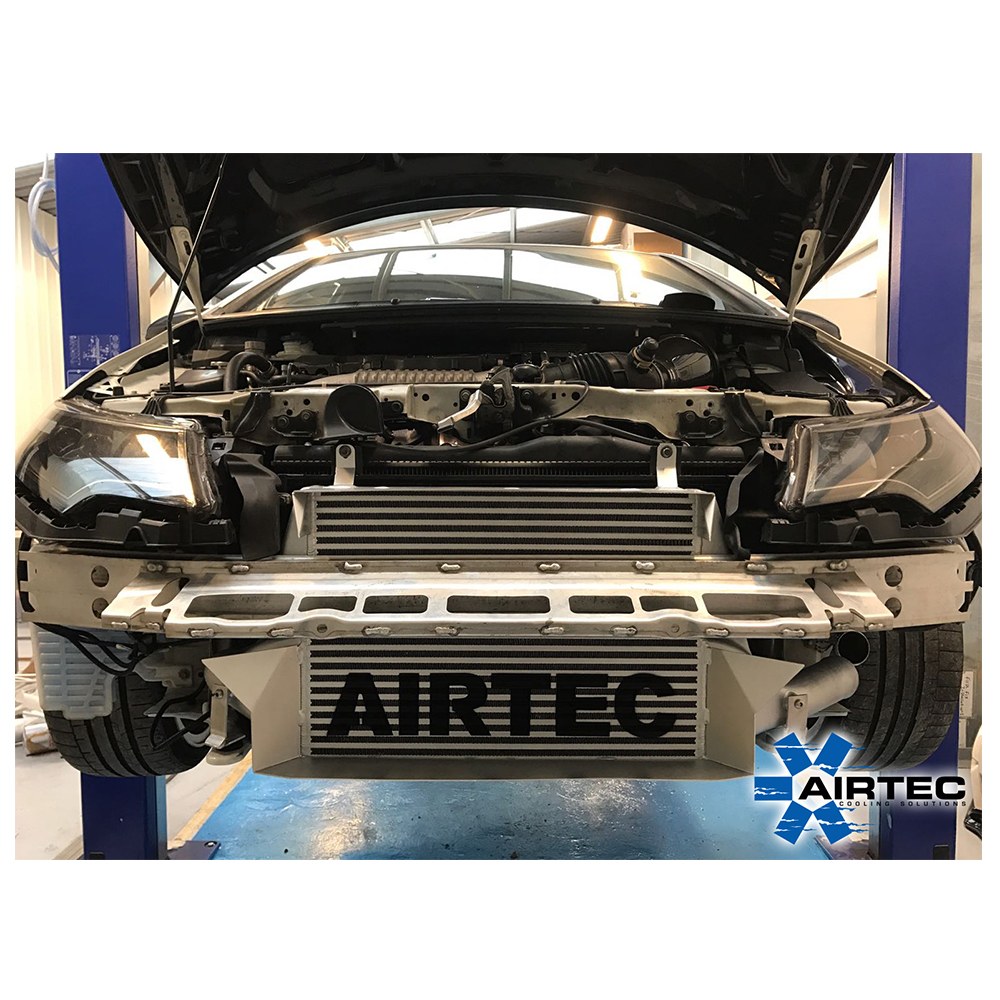

Despite its much greater surface area and volume, the AIRTEC intercooler upgrade fits neatly behind the original front bumper and requires no additional drilling or cutting.

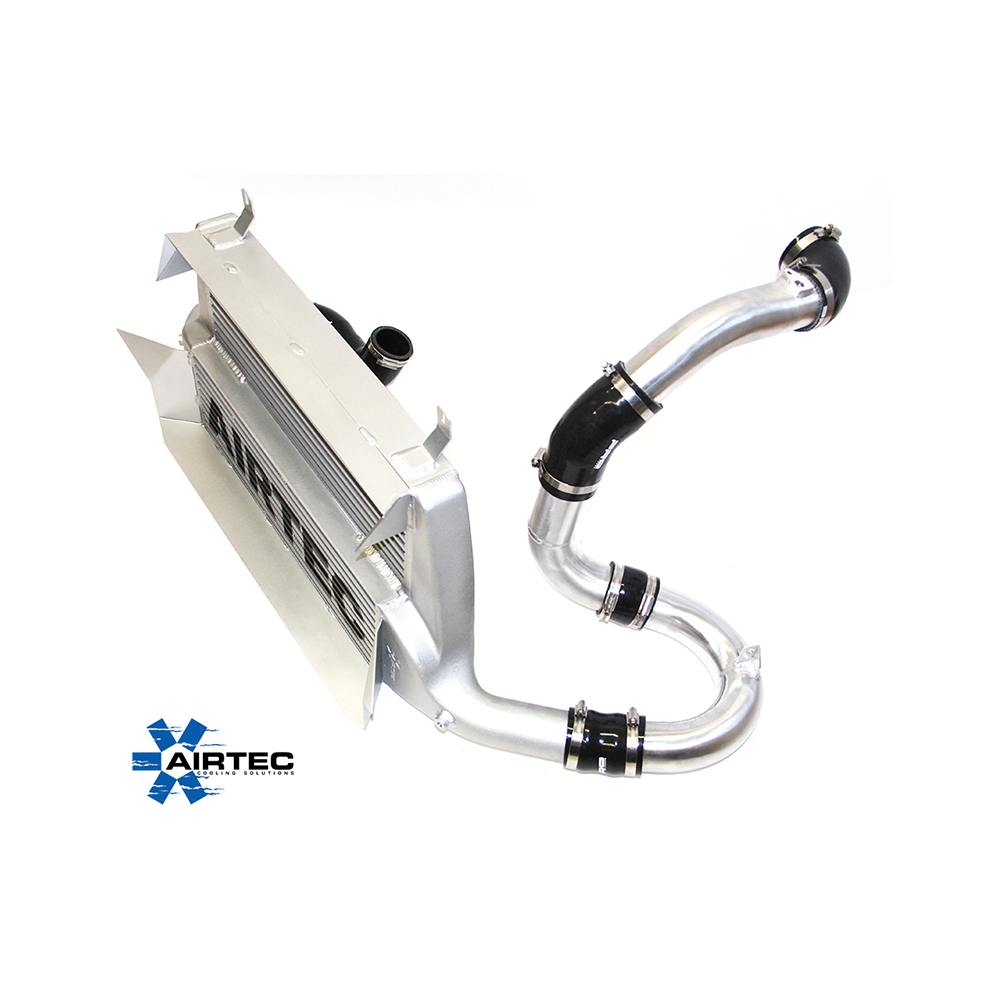

The comprehensive fitting kit includes silicone fit connectors for easy fit, all correct fixings and optional large diameter boost hoses.

features:
60mm to 100mm two-step core design
Hand crafted free flowing end tanks
Lower alloy air scoop
Direct fit, minor trimming needed to bottom under tray

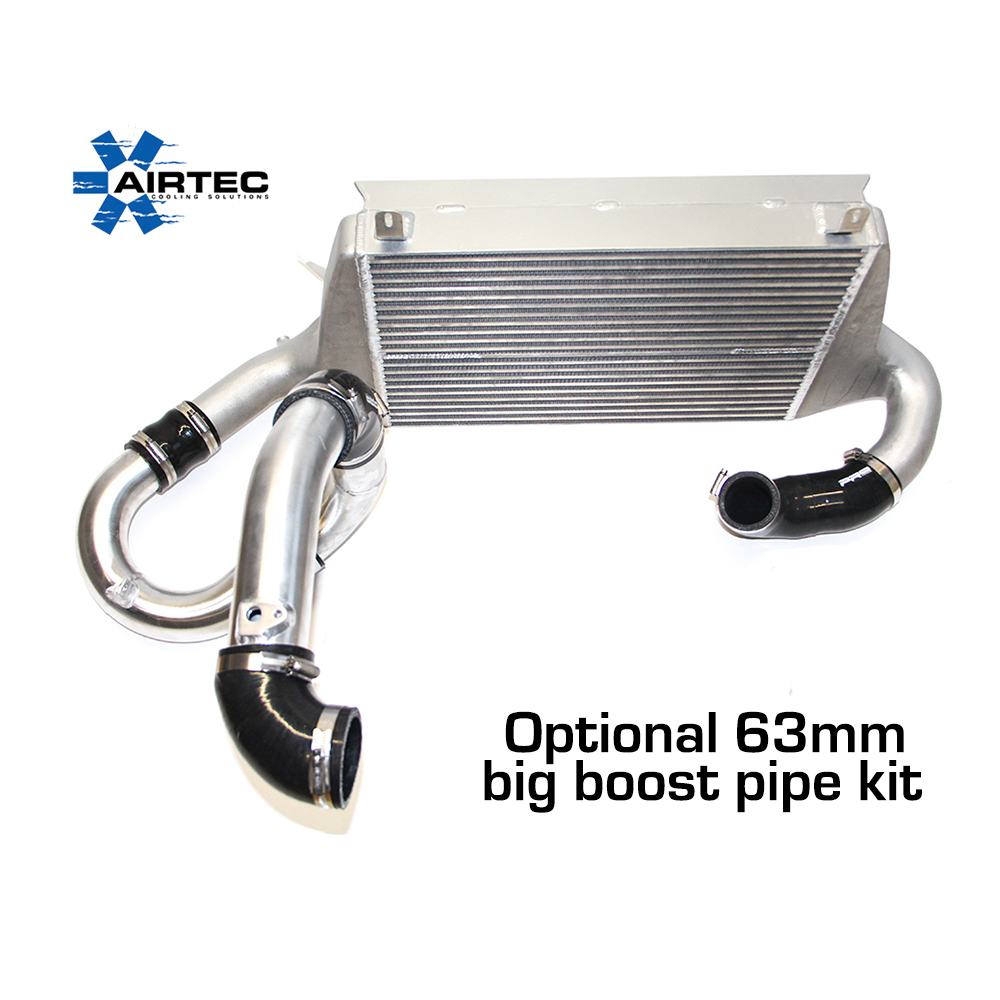

With hand crafted big boost pipes
Available in a choice of either silver or pro-series black finishes, with or without the AIRTEC logo.

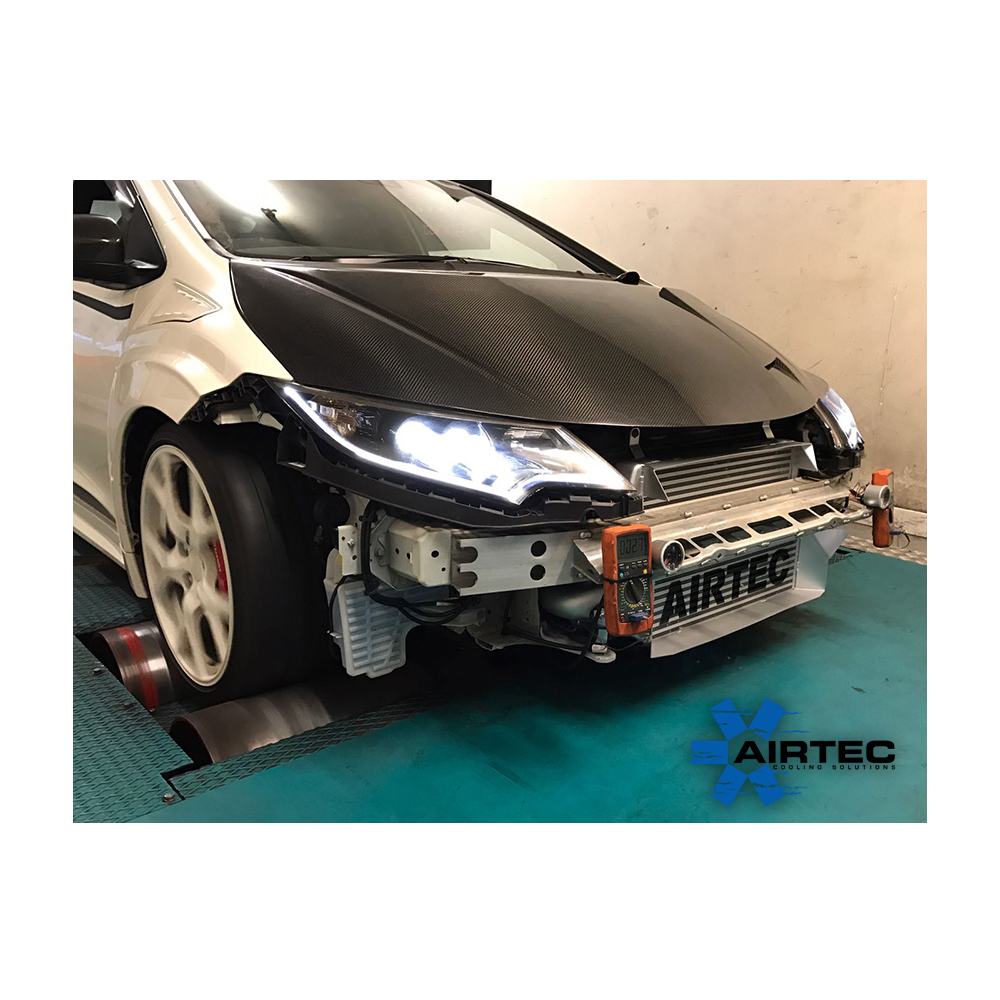

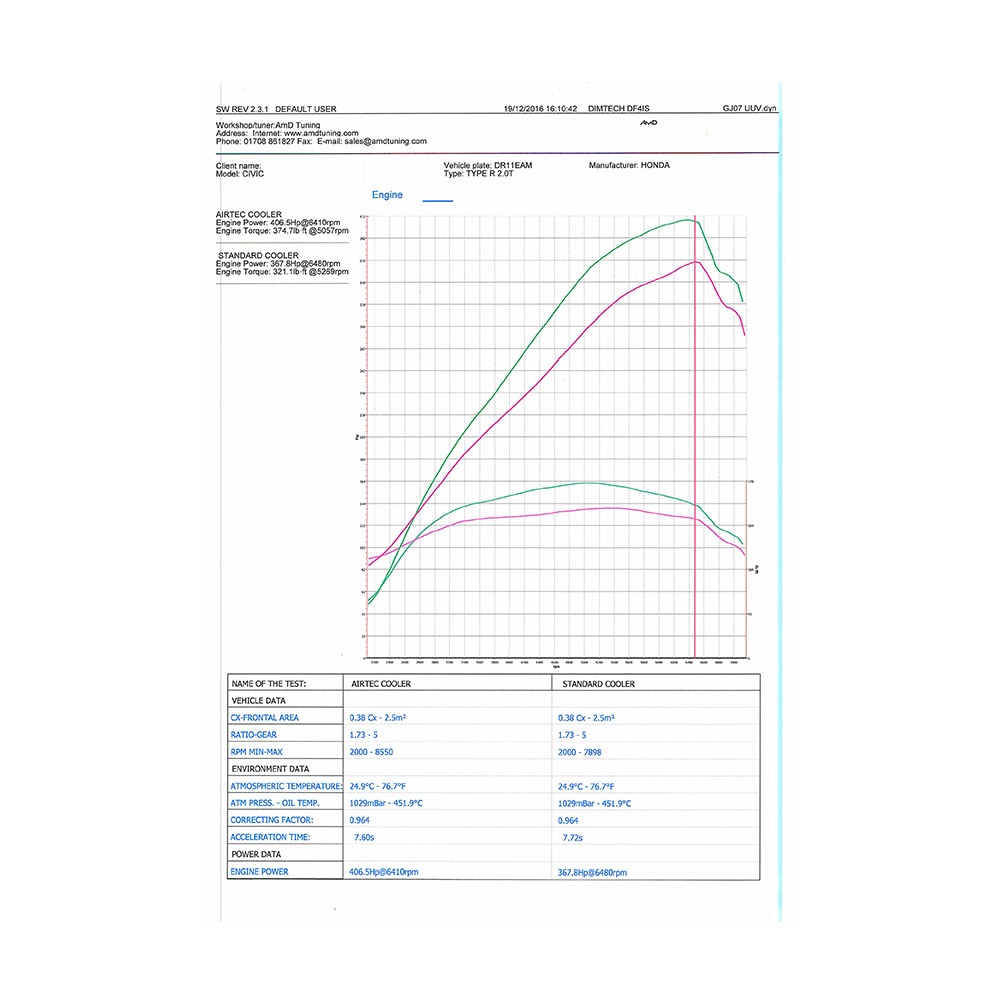

Test results taken at AmD Rolling Road showing charge before and after the OEM intercooler and the AIRTEC upgrade.
(Tested on Dream Auto Motive s FK2 demo car)
Run 1
OEM intercooler

IN 131 OUT 60

AIRTEC intercooler
IN 117 OUT 16
Run 2
OEM intercooler

IN 134 OUT 62

AIRTEC intercooler

IN 107 OUT 17

Run 3
OEM intercooler
IN 132 OUT 58
AIRTEC intercooler
IN 120 OUT 18
Height 370mm
Core thickness 60mm / 100mm (Stepped design)
Width approx. 1000mm (Including end tanks)
Outlet size 63mm
