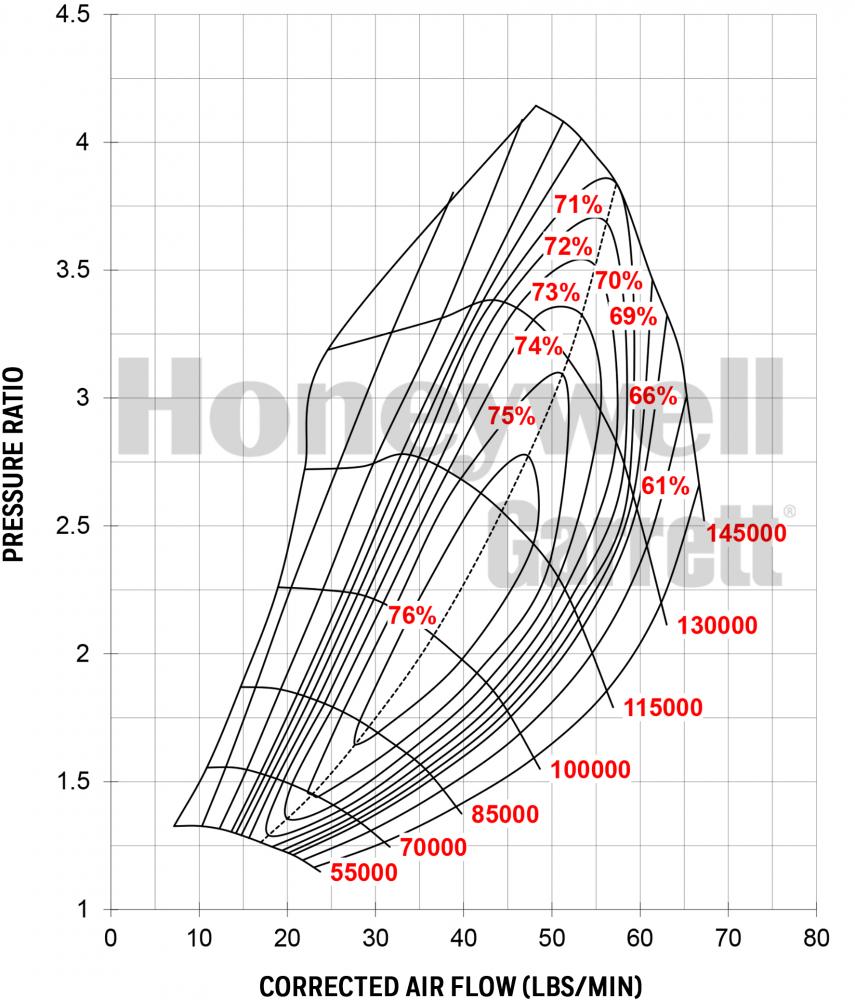

On the compressor side: Inlet: 58 mm Outlet: 76 mm Trim: 58 A / R: 0.60

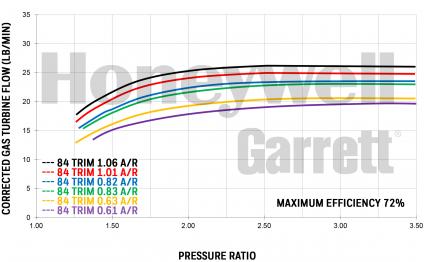

Turbine side: Inlet: 60 mm Outlet 55 mm Trim: 84 A / R: 0.63
Power:
400 - 750
Application:
1.8L - 3.0L

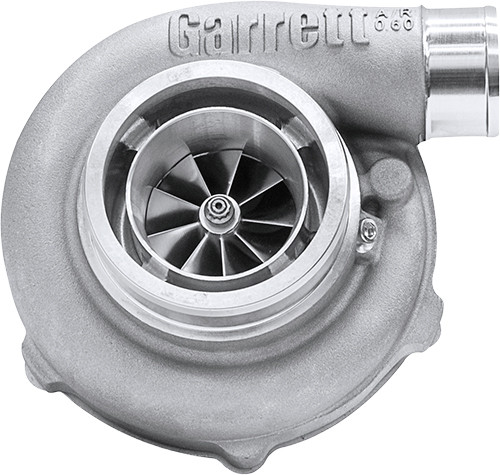

About the Garrett GTX Series turbocharger
The Garrett GTX series turbochargers are specifically designed for hardcore enthusiasts looking for optimal performance.The forged, fully machined billet aluminum supercharger R has next-generation aerodynamics that provide greater horsepower and maximize responsiveness.
The compressor housings ensure reliable, continuous performance throughout the entire performance range.A double ceramic ball bearing prolongs life and improves shaft balance.The water-cooled CHRA keeps the housing temperature to a minimum.The turbine wheel is made of Inconel, a superalloy that maintains strength under prolonged exhaust gas temperatures.
Various A / R and flange configurations are available.The GTX Series turbochargers are used by today's top motorsport teams and are ready to take you to the podium or wherever your goal may be.
